The Add Chart Tool interface allows users to add instances of studies, tools, conditions and favorites to the chart without the need to open the corresponding menu.  This adds simplicity and efficiency for users in adding new indicators to their charts.  This feature also allows users to add an indicator, condition or favorite to another instance of an indicator.

Access the Add Chart Tool menu from the following areas within Symbolik:

• The ellipses menu in the lower right corner of the chart
• Right clicking the background of the chart
• The HUD ellipses menu
• Chart tool instance ellipses menu

Bottom right ellipses and right click menu

You can access the Add Chart Tool interface via the ellipses menu in the lower right corner of the chart or by right clicking in the background of the chart and clicking Add Chart Tool at the top of the menu. From this menu, you can select which instance you want to apply your study, condition or favorite. You can apply it the symbol data set, or to another indicator currently displayed on the chart. Learn more about Indicator on Indicator.

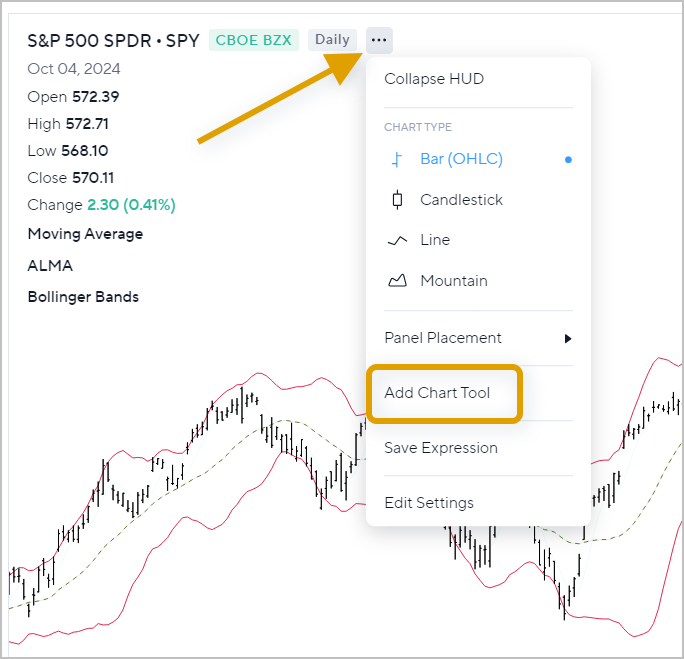

HUD ellipses menu

You can also access the Add Chart Tool interface by clicking the ellipses menu from the Heads Up Display (HUD). Accessing via the ellipses will allow the user to quickly add a study, condition or favorite to that specific instance on the chart. These options include the current symbol data set or existing instances of studies and conditions.

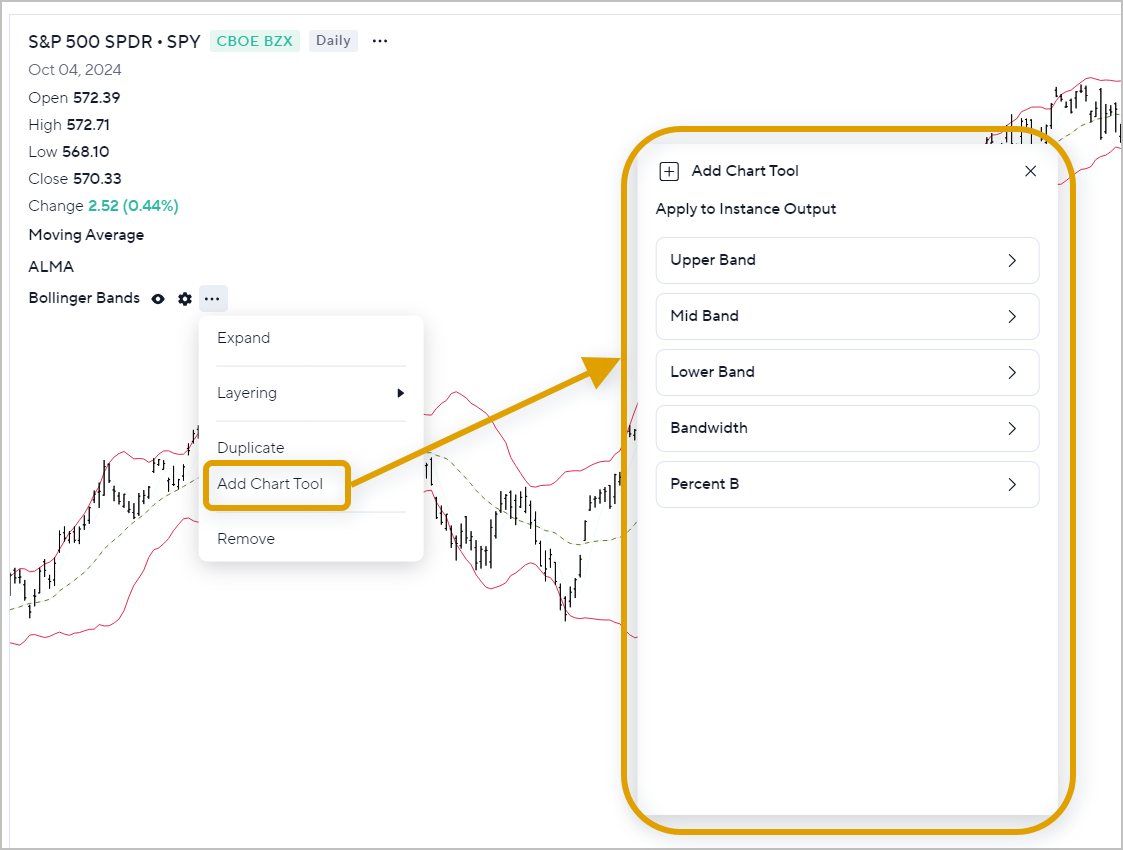

Study in HUD ellipses menu

Clicking the ellipses menu for a charted instance in the HUD will allow you to add an indicator directly to the selected instance's output.
